Chlorine Dioxide Generator
LOTUS
FUNCTION
  • In-situ ClO2 production
  • ClO2 dosing in proportional mode to water meter
  • ClO2 dosing in proportional mode to ClO2 reading
  • (probe and probe holder not included)
  • Flow control input (flow alarm)
  • Tank level controls (level alarms)
  • Water meter input
  • Stand-by input
  • Real time production data
  • Pumps and SEFL flow sensors monitoring
  • Permanent data storage with system data log (on Logbook menu)
  • Service due date

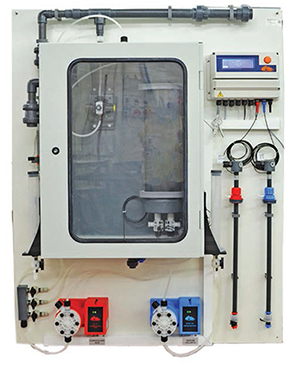

LOTUS A

Reaction at a controlled pressure

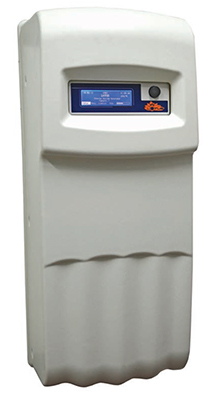

LOTUS B

Reaction at ambient pressure

The LOTUS system produces, doses and controls Chlorine Dioxide for water disinfection. Chlorine Dioxide is produced from diluted base chemicals: acid-chlorite process by Hydrochloric Acid (HCl 9%) and Sodium Chlorite (NaClO2 7,5%).

Chlorine dioxide produced by LOTUS is set to be proportional to the circulating water flow or based on a set point – it is then dosed into the water flow. There is no storage of chlorine dioxide hence no chlorine dioxide gas or concentrated solutions exist outside of the process application.

LOTUS is designed so that the reaction to produce chlorine dioxide takes place in a reaction chamber.
Multi function valves on the injection points ensure the security of the reaction chamber. The base chemicals are stored in tanks and fed into the reaction chamber through suction lances. Integrated level switches automatically stop the pumps when the tanks are empty.

FEATURES
  • ClO2 concentration: 20 gr/l
  • ClO2 diluition: 2 gr/l
  • ClO2 capacity: see models list below
  • LOTUS control instrument
  • HCl (red) and NaClO2 (blue) blind metering pumps
  • Blind pump for dilution water (grey) (LOTUS A)
  • 3 SEFL flow sensors as security (LOTUS A)
  • 2 SEFL flow sensors as security (LOTUS B/LOTUSD)
  • MFKT/V multifunction valve as pressure, safety, anti-syphon and bleed valve
  • PVC reaction chamber
  • ASA (Acrylonitrile Styrene Acrylate) enclosure
  • IP65 protection (NEMA4x) of LOTUS control instrument
  • ENCODER wheel control
  • Working temperature: 0÷45°C (32÷110°F)

CHLORINE DIOXIDE GENERATOR ClO2 max capacity: 8 to 40 g/h
  • LOTUS 8 (LOTUS A/LOTUS B)
  • LOTUS 20 (LOTUS A/LOTUS B)
  • LOTUS 40 (LOTUS A)
CHLORINE DIOXIDE GENERATOR ClO2 max capacity: 80 to 1000 g/h
  • LOTUS-D 80
  • LOTUS-D 160
  • LOTUS-D 240
  • LOTUS-D 400
  • LOTUS-D 600
  • LOTUS-D 800
  • LOTUS-D 1000
SUPPLIED ACCESSORIES

2 LASP Suction Lances 1/2” Injection Valve SEFL Flow Sensor
MFKT/V LINI (optional) Static mixer (optional)
